c64-hw-sim simulates the motherboards of the Commodore 64 (ASSY 250407) and of the ZX Spectrum 48K (board Issue 3B), pin by pin. You can lift the leg of a chip, short it to ground or to +5V, pull a chip out of its socket, or open a resistor. Then you watch what the machine does: the picture on the monitor, the keyboard, every signal on the board.

The program knows the board's netlist (the electrical connections on the PCB) and how each chip behaves at its pins. It knows nothing about what a broken Commodore 64 or Spectrum looks like: when you simulate a broken part and the screen fills with garbage, that garbage was computed from the circuit, not chosen by someone who knew what to expect.

Here is an example. Lift pin 17 (A7) of the C64 color RAM before power on, and the machine boots and looks healthy. The CPU writes and the VIC reads with the same wrong address, so the RAM simply aliases. Put the leg back, and the half of the color RAM that was never written shows up as random colors. Lift it again, and the screen is clean. A real 2114 does the same.

With this program you can do mainly two things:

1. Learn how the Commodore 64 and the Spectrum work at a more intimate level, in a way that is hard to reproduce on real hardware without the risk of damaging it (and on most boards many chips are soldered, not socketed).
2. If you have a broken C64 or Spectrum and some hypothesis about what could be broken, simulate it with this program and perhaps gain clues, so that you can desolder chips in the most logical order, and desolder as few of them as possible (desoldering is a boring process, and every time it risks damaging the board...). A matching symptom is a clue, not a proof: different faults can look the same, and the simulation has its limits (see below).

Please note that even on fast computers this program struggles to simulate these machines at real speed. A real C64 is simulated at 31% of its speed on an Apple M3 Max, 39% on an AMD Ryzen AI Max+ PRO 495 (Gorgon Halo), and 48% on an Apple M5 Max. The ZX Spectrum is simulated at 23%, 28% and 34% of its speed on the same computers. This is not a problem for the goals of this program, but be warned: it is not an emulator to play games with.

Why is the Spectrum slower to simulate than the C64, even though its board is simpler? Because of the time resolution. The ULA is simulated at a very low level, so that the bus contention just emerges from the simulation. Its signals are timed to the half period of its 14 MHz oscillator, so the whole board settles 28 million times per simulated second, against about 6 million for the C64.

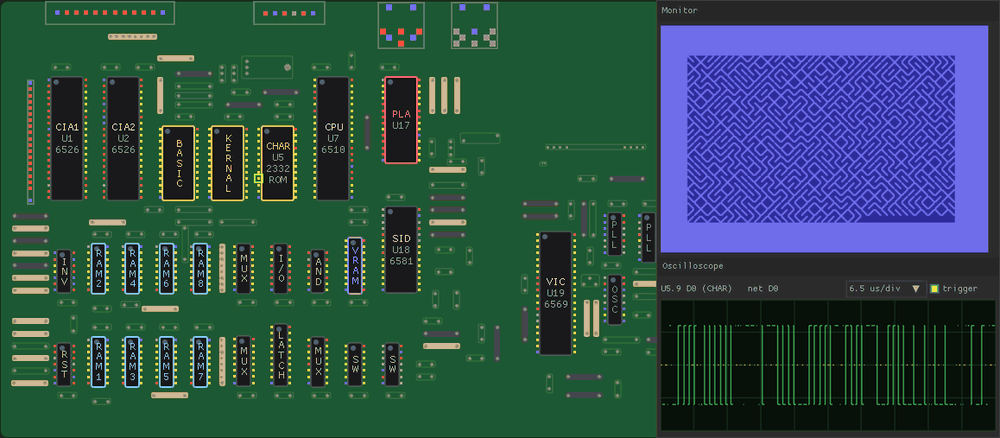

Above: the classic C64 10 PRINT CHR$(205.5+RND(1));:GOTO 10 maze is running when the character ROM (U5) is pulled out of its socket, and later put back. The CPU, the RAM and the program keep working; only the shapes of the characters are lost, as repairers know well. The scope is on the data line D0 of the ROM socket: with the socket empty, the bus floats (the dotted segments) whenever the VIC fetches a character shape. Shown at C64 speed.

I (antirez) got the idea for this program while using and observing Andre Weissflog's (floooh) chips, emulators of the 6502, VIC-II, CIA, SID and friends that use pins as their interface. The next step was to take this approach, with his code as a starting point, to its logical extreme: pin-level models of every other part of the C64, the RAMs, the ROMs, the logic chips, the PLA, and so forth.

The chip cores are floooh's chips, taken from c64-llm (zlib license). The board comes from bwack's C64-250407-Replica-KiCad (CERN OHL). The PLA equations come from the 82S100 read-out by Mark Smith and Marko Mäkelä.

For the ZX Spectrum: the Z80 is floooh's too, altered to run on the edges of its clock. The board comes from liveboxandy's KiCad files of the Issue 3B, redrawn from PABB's gerbers (CC0). The ULA model is checked against the gate netlist of the 6C001 recovered from the die by the emu-russia/ula project (CC0). The ROM is Amstrad's, who allow its distribution. The ZX Spectrum Diagnostics ROM is by Brendan Alford and its contributors (LGPL).

make
./c64-hw-sim [program.prg]

It runs on macOS and Linux (X11), with OpenGL. The graphics library (sokol) and the interface library (nuklear) are in third_party/.

The window shows the board, the monitor, a control panel and an oscilloscope. The two buttons at the top of the control panel switch between the Commodore 64 and the ZX Spectrum 48K: the machine that runs is switched off, the other one on.

Pins show their state as a logic probe would: red high, blue low, yellow pulsing, gray floating, magenta when two outputs fight. Zoom in and the chips show references, address ranges and pin numbers; zoom in more and the logic chips show their gates, the others their pin names. Hovering a pin tells what it is: connector pins have their function ("CN4.3 ATN (SERIAL)").

Click a pin to put it on the oscilloscope and to break it: floating, shorted to GND, or shorted to +5V. Click a chip to pull it out, or to inspect it. Click a resistor, a ferrite bead or the crystal to open it. The control panel lists the faults, each with a repair button.

The inspector draws the chip large, like a datasheet: the pins numbered and colored, the nets outside, the gates inside, wired to their pins. A wire shows what is on it; the output of a gate shows what the gate itself drives, so a gate driving high into a net that stays low is plain to see.

Open (Ctrl+O, Cmd+O on the Mac) shows a file browser, starting in carts/. It lists folders and the files the running machine takes, and says what each file is, from its header, or why it can't be used. Type to narrow the list, or type a path and press Enter to go there. Arrows and Enter, or a double click, open a file; Backspace goes up; Esc closes. Recent files stay in the control panel, one click away, and files can be dropped on the window too.

Chips are boxes named by role:

• RAM1 to RAM8 are the 4164 DRAMs. Each one holds a single bit of every byte: RAMn has data bit n-1.
• VRAM is the 2114 color RAM.
• BASIC, KERNAL and CHAR are the ROMs.
• PLA is the address decoder.

In the inspector, the output mark of a 7406 is the open collector transistor: blue while it pulls the line low, gray while it is off and the pull-up decides. For the PLA the inspector lists its product terms, lit while they are true, with every input colored by its level: which term selects what, and which input keeps a term from firing.

RESET works like a reset cartridge: it shorts /RESET to GND on the user port. Hold it, or keep it pressed to look at the board in reset. The CPU, the CIAs and the SID reset; the VIC, which has no reset pin, and the RAM don't. Power cycle switches the C64 off and on again.

Programs (.prg) are loaded and RUN, or only loaded with Shift+Enter; the browser says if one is BASIC or machine code, and its address. They are written straight into the DRAM chips, as a freezer cartridge would do it, so loading works on a broken board too.

Cartridges (.crt) are plugged into the expansion port (the C64 is switched off and on, as you would do); the browser shows a cartridge's kind and name. The plain ones are supported, 8K, 16K and Ultimax, which is what the diagnostic cartridges are: Dead Test replaces the KERNAL and runs on boards with dead RAM or ROMs. A cartridge only drives the expansion port pins, everything else is the board: a dirty contact on the port is a fault on a CN6 pin.

Dead Test gives the flash codes of its manual (one flash for U12, bit 7, up to eight for U21, bit 0). For the Diagnostic 586220 cartridge you can plug in its test harness, the dongles that loop back the user port, the cassette port, the serial port, both control ports and the keyboard (as built by Sven Petersen, an open hardware copy of Commodore's). With it a healthy board passes every test, and a broken contact, chip or clock shows where Commodore's manual says it should. Both cartridges are in carts/ (they are Commodore's, see carts/LICENSE).

Type on your keyboard as usual. ESC is RUN/STOP, PgUp is RESTORE, TAB is CTRL, and left ALT is C=.

--machine zx48 starts with the Spectrum, and so does a snapshot or a ROM given on the command line.

The board is the Issue 3B. Its chips:

• ULA is the Ferranti 6C001. It makes the picture, makes the CPU clock, drives the RAS and CAS of the lower RAM, and is the port 0xFE (keyboard, border, MIC, EAR).
• CPU is the Z80A, and ROM is the 23128.
• LRAM0 to LRAM7 are the 4116 DRAMs of the lower 16K, where the screen is. LRAMn has data bit n.
• URAM0 to URAM7 are the 4532s of the upper 32K: 64K chips with one bad half. The links next to them tell the board which half is good; here TI chips are fitted.
• MUX are the 74LS157 address multiplexers. OR and NAND, a 74LS32 and a 74LS00, select the upper RAM and time its RAS and CAS, with two RC delays.
• PAL is the LM1889 video modulator. It is analog and the one chip that is not simulated: the monitor shows the ULA's picture.

The CPU and the ULA share the lower 16K, and this is what makes the Spectrum interesting at the pin level. They sit on the two sides of a row of resistors: 470 ohm on the data bus, 330 ohm on the address lines after the multiplexers. When both drive the bus, each side sees its own value. When the CPU wants the lower 16K while the ULA fetches the screen, the ULA stops the CPU's clock: the famous contention. Here that happens because the ULA holds its clock pin, not because a table of delays says so. On the simulated board, the delays follow the 6,5,4,3,2,1,0,0 pattern known from the real machine. The first contended T-state comes 14337 T-states after /INT falls. Emulators put it at 14335 or 14336, counting from their own frame start.

Keys: ESC is BREAK, TAB is SYMBOL SHIFT, left SHIFT is CAPS SHIFT. RESET shorts /RESET to GND on the edge connector. Open loads 48K snapshots (.sna, .z80): they are written straight into the DRAM chips, like the C64 programs. A 16K ROM (.rom) is plugged into the edge connector like a ROM cartridge: it holds /ROMCS high and answers in place of the internal ROM. The ZX Spectrum Diagnostics ROM is in carts/ (LGPL). On a healthy board it passes its tests; on a broken one it says what it found.

The power supply is modeled by what it does. The 7805 makes +5V. The DC-DC converter (TR4, TR5 and the coil T1) makes +12V, and its charge pump makes -5V. The 4116s need all three: break TR4, or D12 of the -5V pump, and the lower RAM stops working. Without the crystal X1 there is no clock at all.

tests/zx-faults.sh runs 13 common faults. As on the C64, the expected symptom of each one was written down before running the simulator. A missing lower RAM chip leaves the ROM's RAM test pattern on the screen, and a missing upper RAM chip gives a 16K Spectrum. tests/zx-diag.sh runs the Diagnostics ROM on a healthy board and with bad RAM chips: it finds the failing data bit (so the chip) where its manual says it does.

The ULA is not an emulator core: it is a model at its pins, at the resolution of its 14 MHz oscillator. Every half period it decides /RAS, /CAS, the address pins, the CPU clock, /INT, what it puts on the data bus for a port read, and the colour of the pixel. Its logic and its timing come from the die: the emu-russia/ula project recovered the 6C001's netlist, 661 NOR gates.

tools/ulacheck.c keeps the model honest. The simulator logs what the ULA saw on its input pins at every half period (ZXHW_ULALOG=file), and the checker runs the 661 gates on the same inputs. Then it compares every output, at every half period, and the colour of every pixel. It has been run on a Spectrum booting, on the ROM's editor, and on a BASIC program that changes the border colour as fast as it can. There are three documented simplifications, listed at the top of src/ula.c, none of which matters to the chips on the board. Apart from them, every output and every pixel are the same. The gates also taught a detail: a new border colour shows only from the next 8-pixel boundary, because it goes through the same latch as the attributes. The netlist is not in this repository; tools/ulacheck.c says where to get it.

floooh's Z80 runs one T-state per call and puts its pins out when it suits an emulator. The ULA needs more: it looks at the address and /MREQ at the right half of a T-state to decide whether to stop the clock, and it can stop the clock in either phase. So chips/z80.h is now stepped on every edge of its clock, and its pins follow the Zilog timing diagrams. Its instructions, flags and timings are those of the original core. tests/z80 has the tests: the pin waveforms of every kind of bus cycle, and ZEXDOC and ZEXALL. chips/codegen has the code generator.

./c64-hw-sim --headless 200 --text --shot out.png --fault U17:removed

This runs four seconds (200 frames) without a window. It prints the text read from the monitor picture, as a person would read it, and saves the picture. A fault is written REF:what or REF.PIN:what:

U17:removed   U21.14:gnd   U12.14:vcc   U9.2:open   CN6.B:open   RP4:short

A .crt file given on the command line is plugged in before power on, --harness plugs the 586220 test harness.

Other options:

• --at 150:U6.17:open --at 300:repair breaks and repairs parts while the C64 runs; RESET:pressed and RESET:released work there too.
• --machine zx48 runs the ZX Spectrum; fault specs use its references (IC10:removed, D12:open, TI-3:open).
• --nets reports the nets where outputs fought.
• C64HW_TYPE=$'PRINT 1+1\n' types text after boot.
• ZXHW_ULALOG=file[:cycle] logs the ULA's pins for tools/ulacheck.c; ZXHW_CONTENTION=1 prints every contended T-state and its delay; ZXHW_TRACE=FROM:COUNT prints the buses at every half period of COUNT T-states from T-state FROM.
• C64HW_CHECK=1 checks every KERNAL read and every VIC fetch against the ideal memory map.
• --record 900:DIR --frames 90 (graphical mode) saves the window 90 times, every 4 emulated frames from frame 900 on. This is how the GIF above was made.
• --inspect U8, --browse, --view X,Y,ZOOM, --mouse X,Y, --down X,Y@F, --up X,Y@F, --key NAME@F and --chars TEXT@F (graphical mode) open the inspector or the file browser, aim the board view, click the mouse and press keys at UI frame F, for screenshots and tests of the interface.

tests/faults.sh runs 31 common faults. The expected symptom of each one was written down before the simulator was run.

tests/diag.sh runs the diagnostic cartridges and checks what they report against their manuals: Dead Test's flash code for every DRAM, the 586220 with its harness on a healthy board and with faults. It takes a few minutes, so it runs only when you start it. --flashes (headless) counts Dead Test's flash series.

tools/kicad2c.py turns bwack's KiCad replica of the 250407 into C tables: 216 parts, their pads, and 249 nets. It does the same for the Spectrum's Issue 3B.

Every pin drives its net strongly, weakly (a pull-up), from a supply short, or not at all. The strongest drive wins. Two equal drives fighting are a contention, and low wins.

A net that nobody drives keeps its charge, and then drifts:

• to about 1.4V within microseconds, if TTL inputs load it;
• toward 0V in a fraction of a second, if only MOS inputs are on it.

MOS inputs compare that voltage, plus some noise, with their own threshold, so a floating line can read erratically.

Power faults depend on the chip:

• A chip without VCC is dead.
• A chip without GND lets its outputs float high.
• A CMOS chip keeps running on phantom power, which reaches it through the protection diodes of its pins.

The noise is seeded, so a run can be repeated exactly.

src/parts.c models these parts at their pins:

• the glue logic;
• the ROMs;
• the DRAMs, which latch the row on /RAS and the column on /CAS;
• the color RAM;
• the PLA, with its real logic equations.

The 6510, VIC-II, CIAs and SID are cycle-accurate cores from floooh's chips, with a few additions (marked in their headers): the CIAs' time of day clock, serial port and /PC handshake, the SID's paddle registers. In src/board.c each core sits in a socket that sees only its pins. Each half cycle runs in three steps: the row address, then /RAS falls, then /CAS falls. The whole board settles after each step.

On the Spectrum everything is timed by the ULA's oscillator: the board settles at every half period of it, eight times per CPU T-state. The ULA steps, the board settles, and the Z80 gets an edge of its clock if there was one. Then the memories see their strobes, and the board settles again.

PLAN.md explains the reasoning behind these choices.

It is slow, between a third and half of real time on the computers listed above (a fifth to a third for the Spectrum), because every pin of every chip is simulated.

The floating and power models have the right shape, but their numbers (thresholds, drift times, crosstalk) are guesses. They are constants in src/sim.c.

These analog parts are not simulated: the video output, the SID filter, the power supply, and the dot clock PLL. On the Spectrum: the video modulator, the sound, and the tape input. Three of them are modeled by what they do, because the logic depends on them: the 50 Hz from the mains that drives the time of day clocks, the cassette motor driver, and the SID's paddle A/D converters (the time the 1800 pF capacitor takes to charge through the paddle).

Faults inside a chip, such as bad DRAM cells or slow parts, and bridges between two nets are planned but not done.
